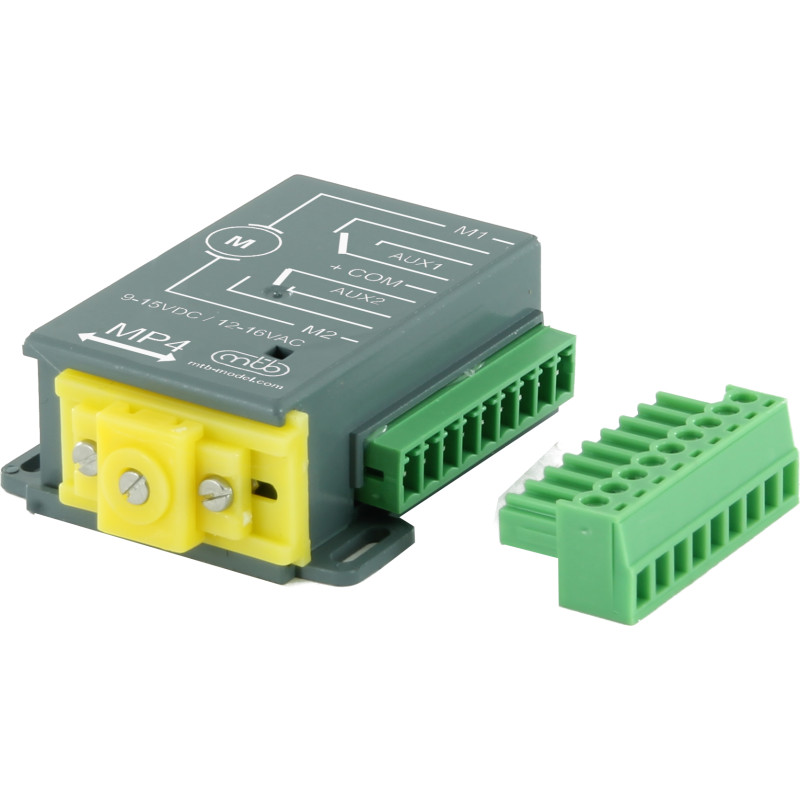

• Cheaper replacement for MP5

• Miniature size

• Universal connection of electromagnetic or motoric switch

• Setting of 4 stroke ranges 3, 6, 9 a 12 mm

• Two auxiliary switching contacts

• Detachable connector for easier installation

Both DC and AC power supplies are available, with consumption aprox 150 mA during motion. The mechanism has a position end limit switch, i. e. the control voltage can be applied permanently, to be disconnected automatically once a respective position is reached and the motion stops.

Electrical connection is the same as old–style electromagnetic switch.

The stroke can be set in three steps 3 mm, 6 mm, 9 mm and 12mm – see the illustration. The cam mechanism provide slow end position stop and lock.

MP5 is equipped with two SPDT contacts (1A) for auxiliary purposes. Easy installation with removable screwless connector.
