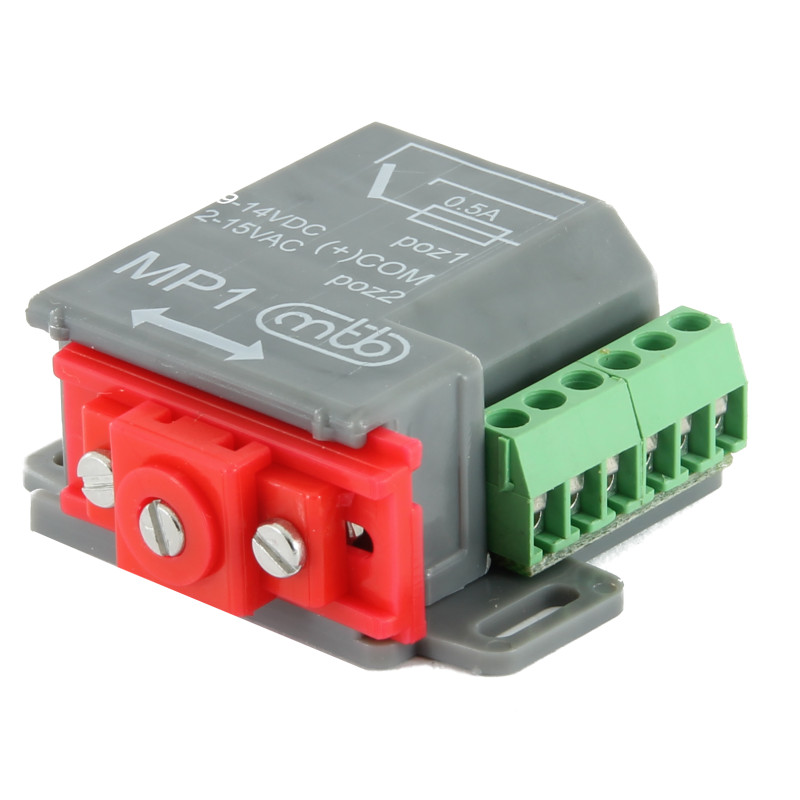

• Motor switch with silent and slow motion

• Miniature scantlings 28x40mm (w x l)

• Inbuilt motor with planetary transmission

• Direct replace of electromagnetic motor switch with three-core connection

The motor switch is used for electric actuation of the two–position mechanisms in models, such as turnout points or mechanical signals and barriers.

The stroke can be set in three steps 3 mm, 6 mm, 9 mm – see the illustration. The cam mechanism provide slow end position stop and lock.

Electrical connection is the same as old–style electromagnetic switch and MP1 can directly replace them without changes in wiring of model layout scheme.

MP1 is equipped with one SPDT contact for auxiliary purposes, like frog polarisation, with capacity 1A.
